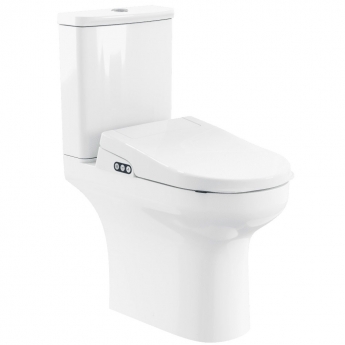

AKW Raised Height Close Coupled Toilet Pan with Bottom-Entry Bidet Consilio Seat and Lid

Quick Code: 2843264
Ref: AKW28410
AKW
£1,376.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 36 monthly payments of £44.09 at 9.9% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Toilet Cistern sold separately (See the You May Need)
  • Comes complete with Raised-Height Close-Coupled Pan and Bottom-Entry Bidet with Consilio Seat & Lid
  • Consilio seat features a large aperture ideal for care environments
  • Raised-height toilet pan makes it easier for less mobile users to lower/rise from the toilet
  • Rear holes in toilet pan conceal AKW Bidet pipework for an enhanced cosmetic finish and reduction of hazards in the event of a trip or fall
  • Rimless toilet pan with direct flushing technique offers improved hygiene by reducing the build-up of bacteria and making cleaning easier
  • Two-point, side-entry floor fixings reduce build-up of dust/bacteria, are easier to clean, and come with white cosmetic caps to prevent rusting
  • Rounded edges and corners reduce the risk of injury in the event of a trip or fall
  • Toilet pan can support up to 60st (400kg); bidet seat can support a maximum load of 23.5st (150kg)
  • Contemporary design is compatible with Navlin and Navlin Doc M wash basins for a complete bathroom suite
  • Components individually packaged in recyclable materials to prevent damage during transit
  • BS EN 997 approved toilet pan for guaranteed flush performance
  • Bottom inlet water connection simplifies pipework
  • Horizontal waste connection for easy installation and maintenance
  • Supplied with relevant fixing kits as standard

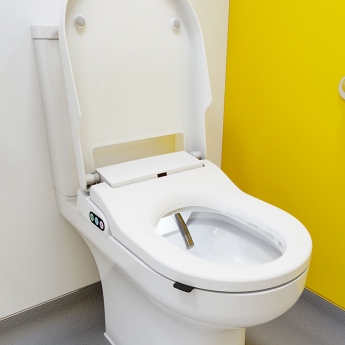

  • Adjustable spray control offers thorough cleaning where and how it is needed
  • Instantaneous 1750W water heater offers a steady flow with no reheating period in between washes, and a choice of temperature settings
  • Powerful 350W dryer with settings that can be tailored to specific needs
  • Remote control provides users with full function control via a handheld ergonomic remote, which is easy to use and supports carers with maximising user dignity
  • Self-cleaning function ensures the spray arm nozzle and surrounding area are hygienic
  • Night light helps those with visual impairment or dementia locate the toilet in the dark or dimly lit conditions, helping to alleviate the risk of confusion
  • Quiet and efficient operation promotes user dignity while providing a reliable experience
  • Integral seat sensor prevents accidental usage by ensuring activation only occurs when the seat is in use
  • Lid and seat lift assist with front moulded grips on the lid and contrasting side tabs for easy lifting, which are more hygienic and supports those with limited dexterity
  • Quick-release seat and lid allows you to adapt the bidet for various care needs, and makes cleaning easier
  • Soft-close seat and lid is slower, quieter, and therefore safer for users, especially children
  • Seat lugs provide discreet stability when side transferring from a chair or commode
  • Strong load limit of 23.5st (150kg) ensures the bidet is suitable for a wide variety of users
  • Quick and easy for your plumber and/or electrician to install with no specialist tools or prior training required
  • Bottom-entry water supply with plumbing concealed within pan
  • Easy to clean, user-friendly design, which should require very little maintenance throughout the bidet's lifetime
  • Low-pressure mode ensures the bidet continues working efficiently during periods of low pressure
  • Pan conforms to BS EN 997
  • UKCA and CE approved
  • AKW are self-certifying and supplying approved flush fittings in line with current UK water regulations for compliance purposes
  • Guarantee: Lifetime on Ceramic (2 year on Bidet)
Show More

Toilet TypeClose Coupled

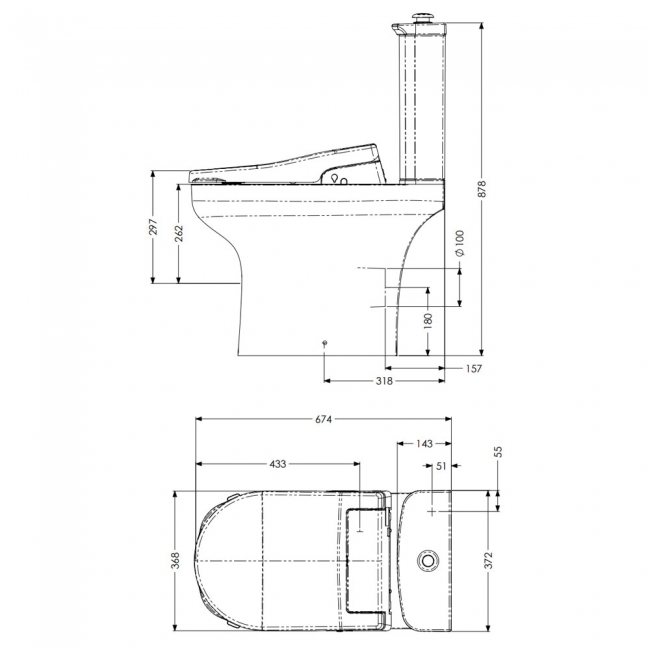

Toilet Width368mm
Toilet Projection674mm
Toilet OutletHorizontal
Outlet Connection Size100
Toilet ShapeCurved
Toilet DesignFully Back to Wall
Toilet IncludesToilet Pan, Bidet Consilio Seat
Toilet FeaturesRaised Height
Rear WashYes
Feminine WashYes
Oscillating SprayYes
Pulsating SprayYes
Oscillating and Pulsating SprayYes
Adjustable Water Temperature6 Levels (default 4th)
Temperature ModesConstant Temperature (default) and Gradual Cooling
Adjustable Flow Rate5 Steps (default 3rd)
Adjustable Spray Position5 Steps (default 3rd)
Air DryingYes
Adjustable Dryer Temperature6 Levels (default 3rd)
Adjustable Dryer Rate5 Steps (default 3rd)
Nozzle Auto CleaningYes
Nozzle Manual CleaningYes
Control ButtonsYes
Water Supply ConnectorG1/2
Water Supply DirectionBottom Entry
Water Supply PressureMin 0.5 (dynamic)-Max 8 (static) bar (in standard mode)
Water Supply Temperature4-30 degree C
Rated VoltageAC230V, 50HZ
Power Rating1750W
Length of Power CordApprox. 1.5m
Ambient Temperature4-40 degree C
Protection DegreeIPX4
Maximum Weight Loading23.5 st / 150kg
Flow Rate (standard)600-1000ml/min
Flow Rate (low)450-650ml/min
Water Temperature31-39 degree C
Wash Cycle Time (standard)2 Minutes at constant temperature mode or 1 minute at gradual cooling mode
Wash Cycle Time (low)1 Minute at constant temperature mode and gradual cooling mode
Heating ModeElement
Safety DeviceThermal cut out fuses\liquid level switch\thermostat
Back Flow PreventionAir Gap
Minimum Air Volume0.2m3/min
Maximum Dryer Power350W
Warm Air Temperature40-52 degree C
Dry Cycle Time3 Minutes
Frequency~2460MHz
Maximum RF Output Power0dBm
Type of Batteries2x 1.5V LR03 AAA (batteries not included)
MaterialCeramic
ColourWhite
StyleModern
MarketCare
MountingFloor
BrandAKW
CollectionModern
Manufacturer Part Number(s)28410
Show More

Care Guide
Type : PDF Size : 2.05 MB
Product Datasheet
Type : PDF Size : 842.27 KB
Fitting Instructions
Type : PDF Size : 4.23 MB
Flush Fitting Instructions
Type : PDF Size : 2.04 MB
Cistern Fitting Instructions
Type : PDF Size : 2.72 MB
Brochure
Type : PDF Size : 4.64 MB

Required Cistern

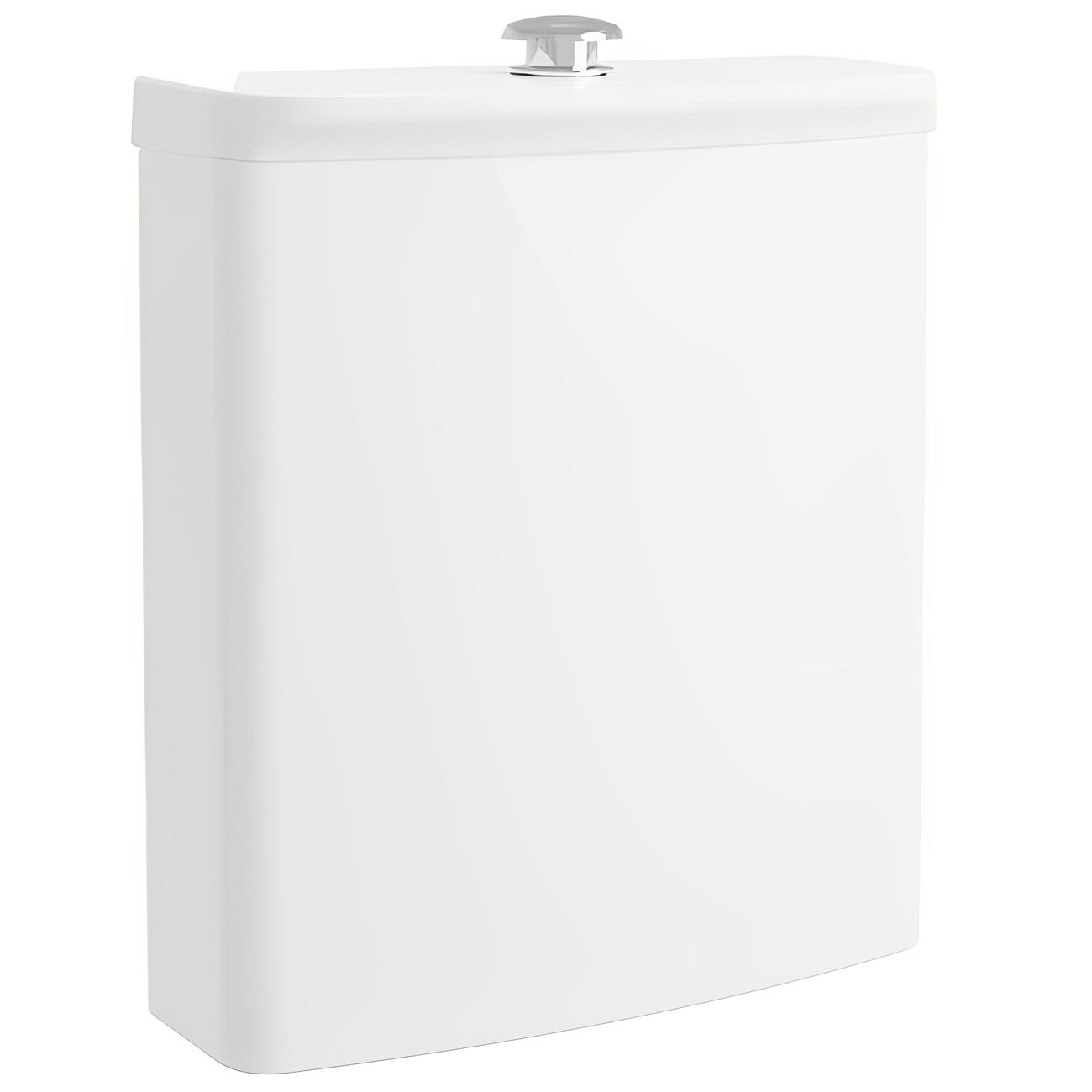

AKW Navlin Cistern with Raised Push Button Flush
AKW Navlin Cistern with Raised Push Button Flush
(AKW23574)
£188.95
In Stock

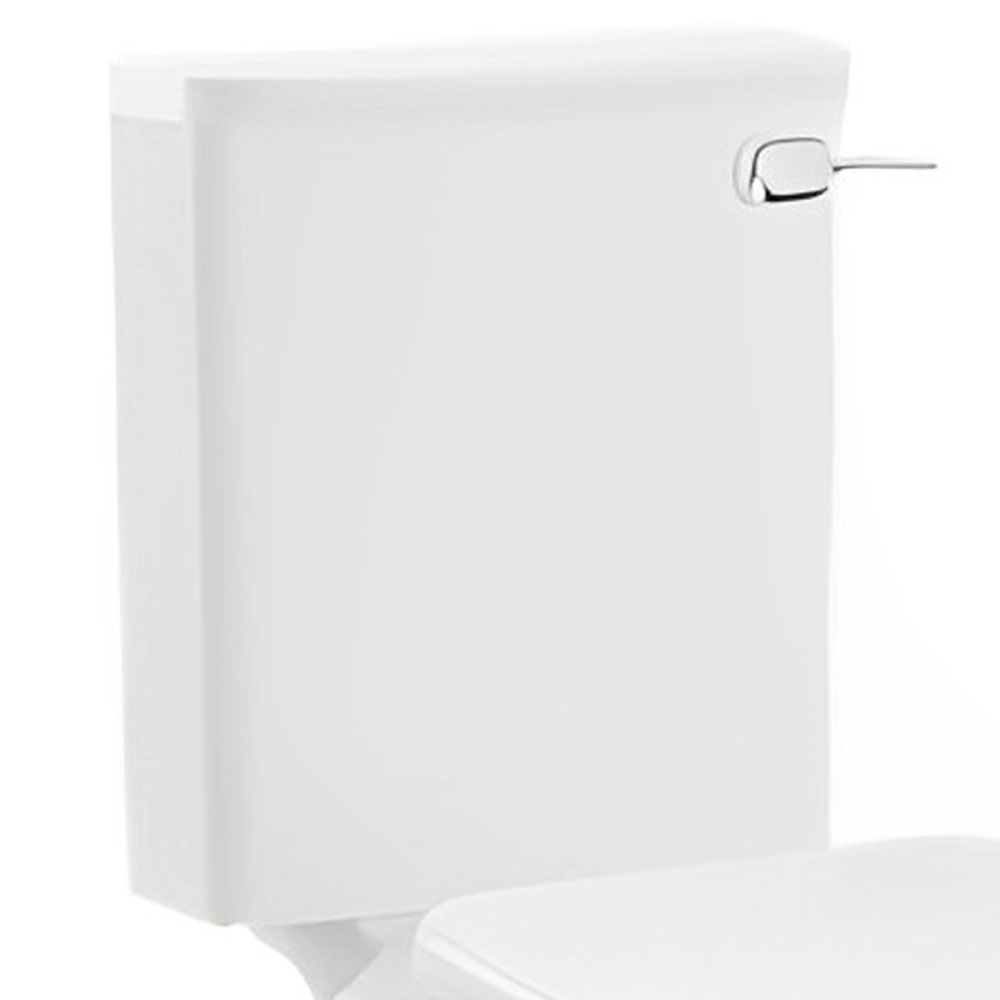

AKW Navlin Doc-M Cistern with Lever Flush with Screw Down Lid
