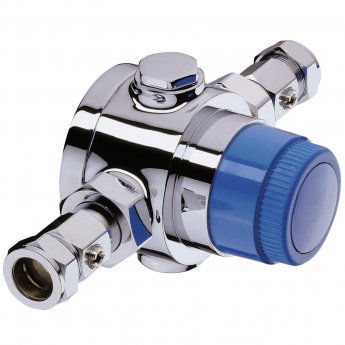

Bristan Commercial TS4753ECP Thermostatic Mixing Valve 22mm - Chrome Bristan Commercial TS4753ECP Thermostatic Mixing Valve 22mm - Chrome
Bristan Commercial TS4753ECP Thermostatic Mixing Valve 22mm - Chrome Bristan Commercial TS4753ECP Thermostatic Mixing Valve 22mm - Chrome

Bristan Commercial TS4753ECP Thermostatic Mixing Valve 22mm - Chrome

Quick Code: 2775209
Ref: BNTS4753ECP
Bristan
£585.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 36 monthly payments of £18.76 at 9.9% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Ideal for group applications at pressures as low as 0.1 Bar
  • Temperature control can be locked in position or allow adjustment
  • Automatic shut-off in the event of hot or cold water supply failure
  • Check valves and serviceable filters as standard
  • Factory pre-set maximum temperature at 43 Degree C
  • Operates at a maximum pressure differential of 10:1
  • 22mm inlet and outlet connections
  • TMV3 and WRAS Approved
  • Supplied with a 1 year guarantee from the manufacturer
Show More

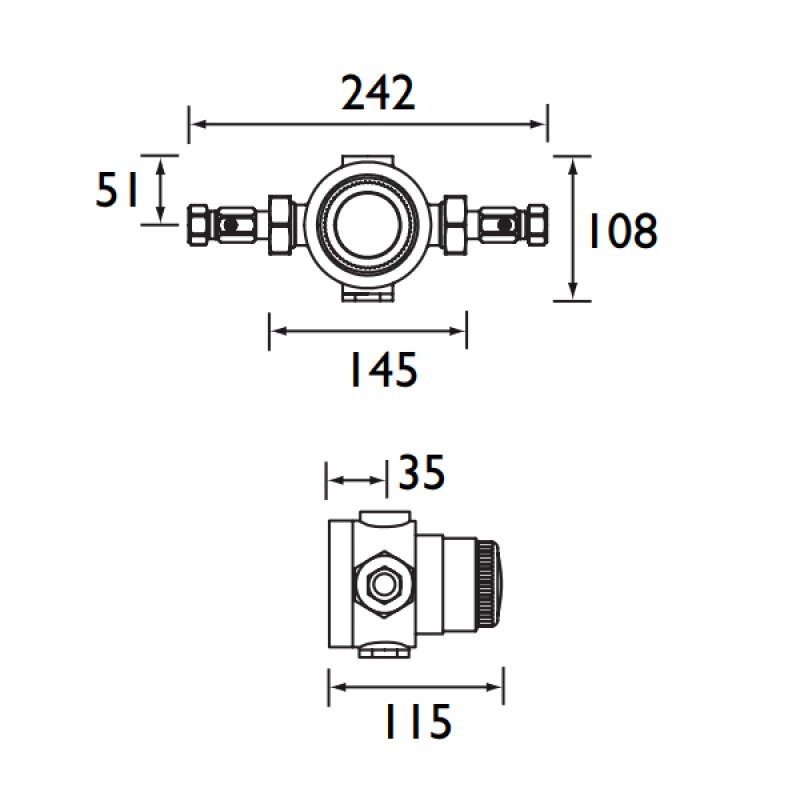

Mixing Valve Height108mm
Mixing Valve Width242mm
Mixing Valve Depth115mm
Inlet Connection Size22mm
Outlet Connection Size22mm
Max Inlet Temperature80 Degree C
WRAS Approval Number2104911
TMV3 Approval NumberBC1314/0415
MaterialBrass
ColourChrome
BrandBristan
CollectionCommercial
StyleModern
MarketDomestic
EAN Barcode5014868000725
Manufacturer Part Number(s)TS4753ECP
Manufacturer Part NumberTFP3001
Flow Rate @ 0.2 Bar19 l/min
Flow Rate @ 0.5 Bar33 l/min
Flow Rate @ 1.0 Bar47 l/min
Flow Rate @ 2.0 Bar66 l/min
Flow Rate @ 3.0 Bar81 l/min
Flow Rate @ 5.0 Bar105 l/min
Show More

Fitting Instructions
Type : PDF Size : 805.14 KB
Product Datasheet
Type : PDF Size : 630.21 KB
Guarantee Policy
Type : PDF Size : 111.46 KB
