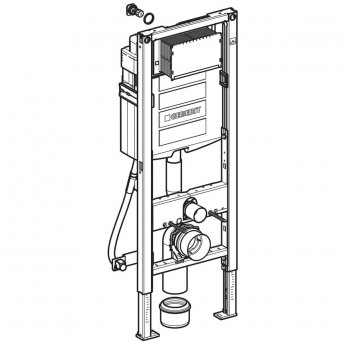

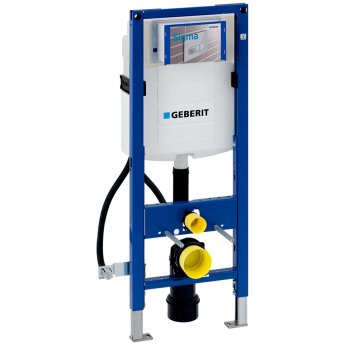

This Geberit Sigma wall-hung Frame & Cistern is specifically designed for wall hung pans with a 700mm projection. It also has a reduced width to accommodate support rails or handles next to the frame.

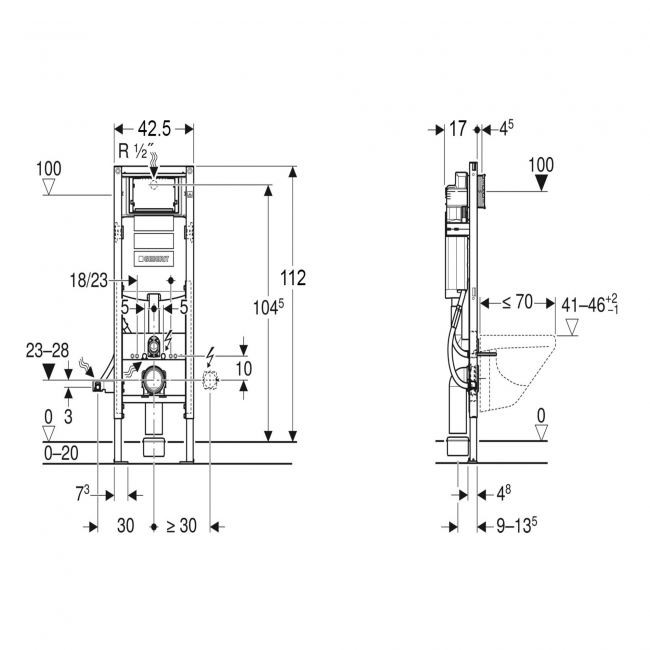

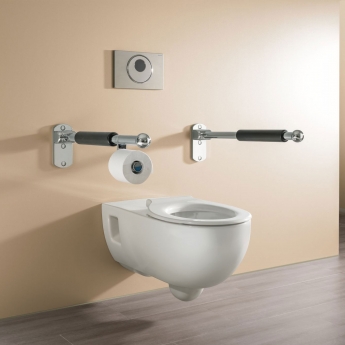

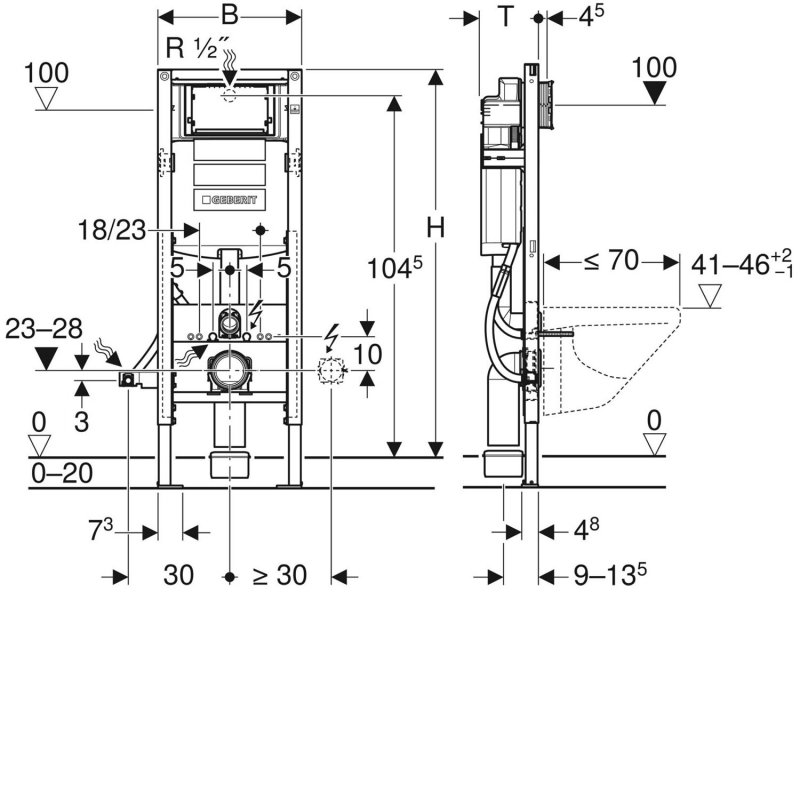

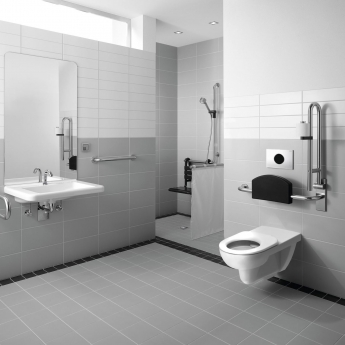

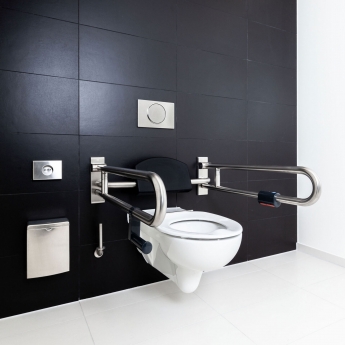

This frame also has the ability during the installation to choose from a WC height ranging from 410mm to 460mm. This makes it the perfect frame for disabled or wheelchair user instalments in care homes, hospitals, or private residences.

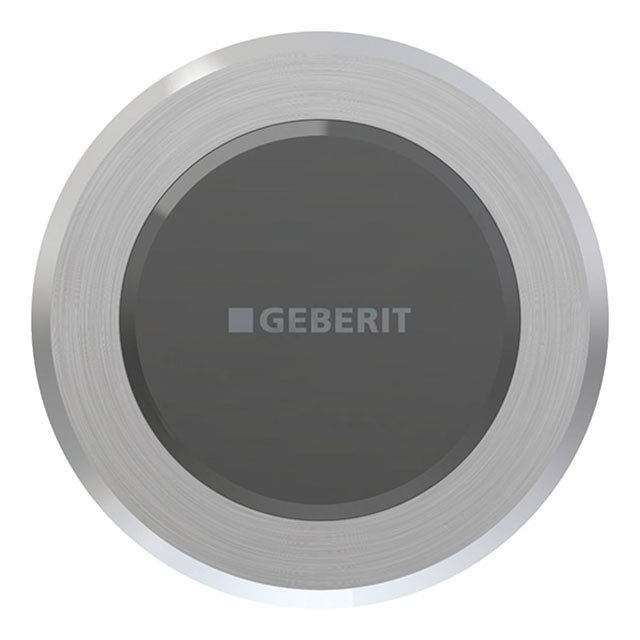

This cistern & frame is equipped for installation requiring electrical connections. This means touchless flush plates, shower toilets, odour extraction units, and other devices can be installed or retro-fitted quickly and easily.
Known for their reliability, every Geberit cistern is leak-tested before it is delivered. The 50-year guaranteed spare parts availability provides long-term security.
Product Features
- Supplied with Sigma 12cm concealed cistern Sigma with front actuation
- Galvanized feet
- 2 protection plugs
- Fastening material
- 2 threaded rods M12
- Feet adjustable 0-20 cm
- Non-slip leg supports
- Rotatable foot plates
- Connection set for WC, 90mm diameter
- Power & Connect Box mountable
- Self-supporting frame, powder-coated
- Concealed cistern with front actuation
- Fastening option for electrical connection
- Connection bend 90 degree made of PE-HD, 90mm diameter
- Adaptor socket made of PE-HD, 90 / 110mm diameter
- Immediate post flush possible with factory setting
- Water supply connection on the rear or top centre
- Protection box for service opening can be cut to length
- Concealed cistern fully insulated against condensation
- Fastening for connection bend, sound-absorbing
- Tool-free installation and maintenance work on concealed cistern
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Protection cover box for service opening protects against moisture and dirt
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg)
- Durable: Installed 60 million times over the past 50 years, Geberit concealed flush plates represent the ultimate tried-and-tested solution
- Hygiene: No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
- Simple Maintenance: Simply remove the flush plate for access to all important parts
- Tested Impermeability: Every one-piece blow-mold Geberit cistern is individually tested to guarantee water tightness
- Acoustics Solutions: Acoustic solutions with the Duofix frame mean it's all quiet behind the scenes
- Supplied with a 10 year guarantee ( 50 year on spare parts ) from the manufacturer
Important Information

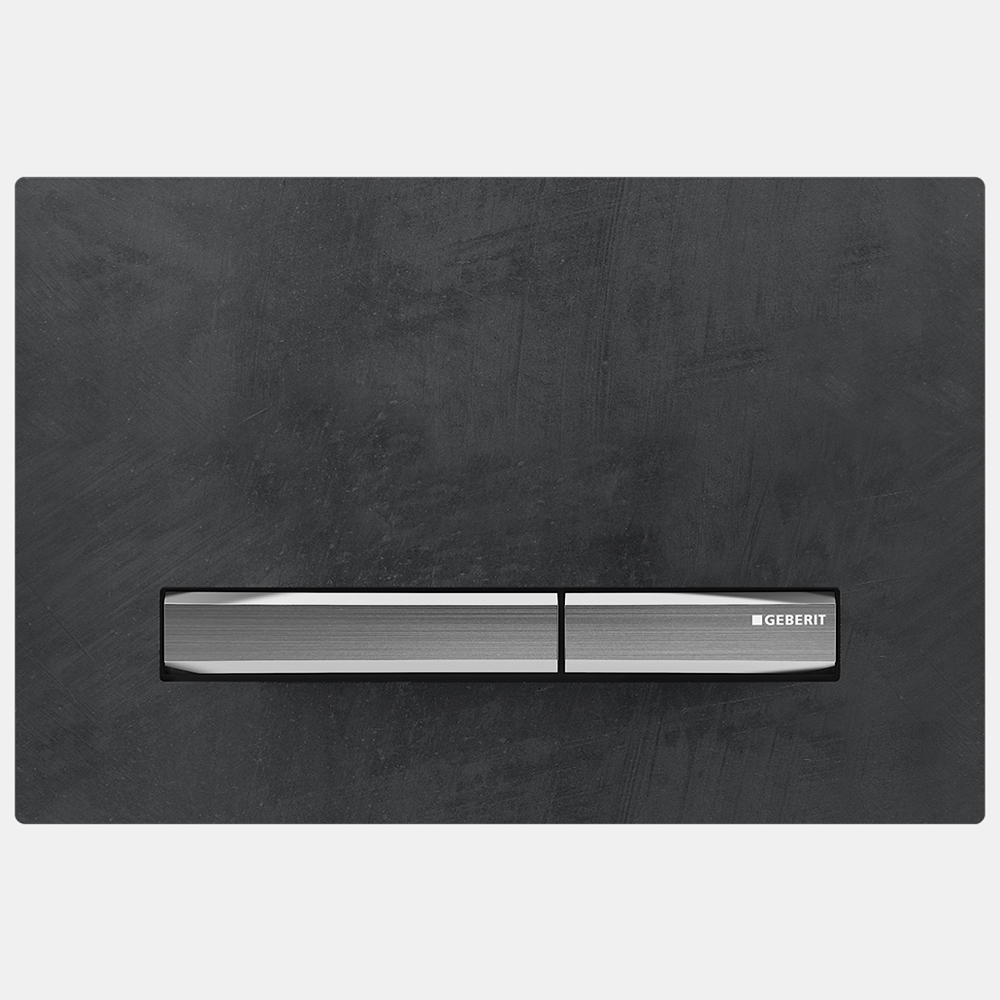

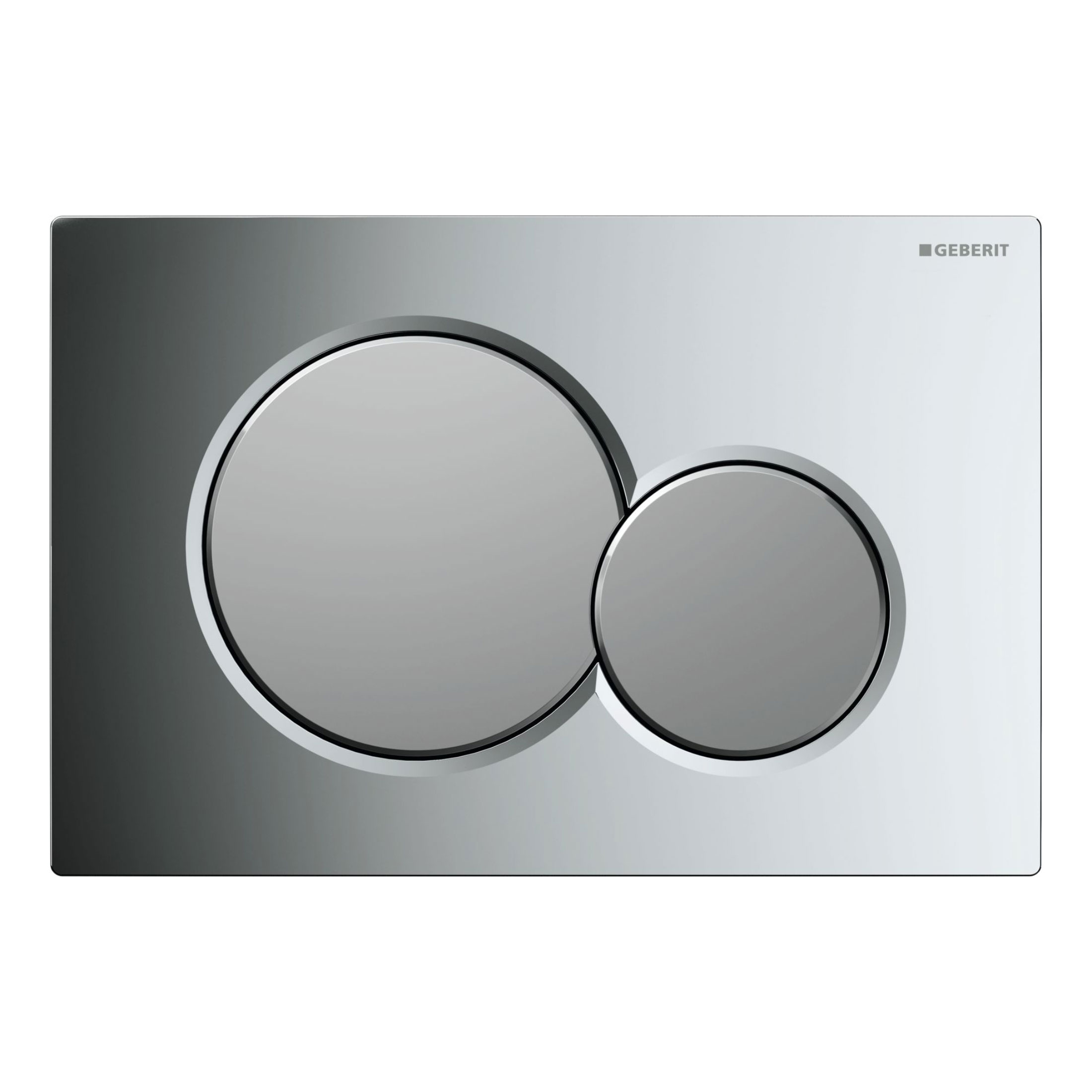

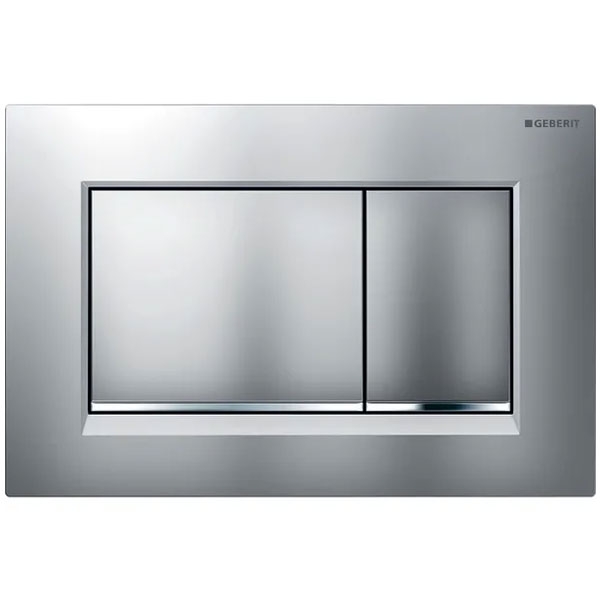

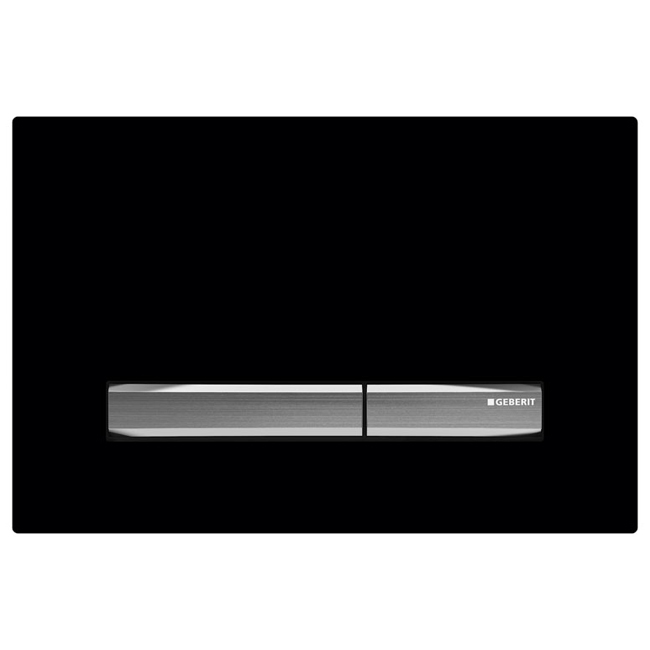

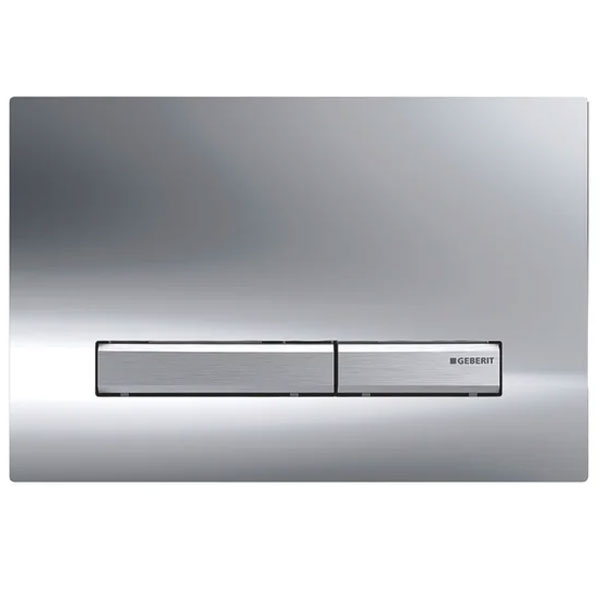

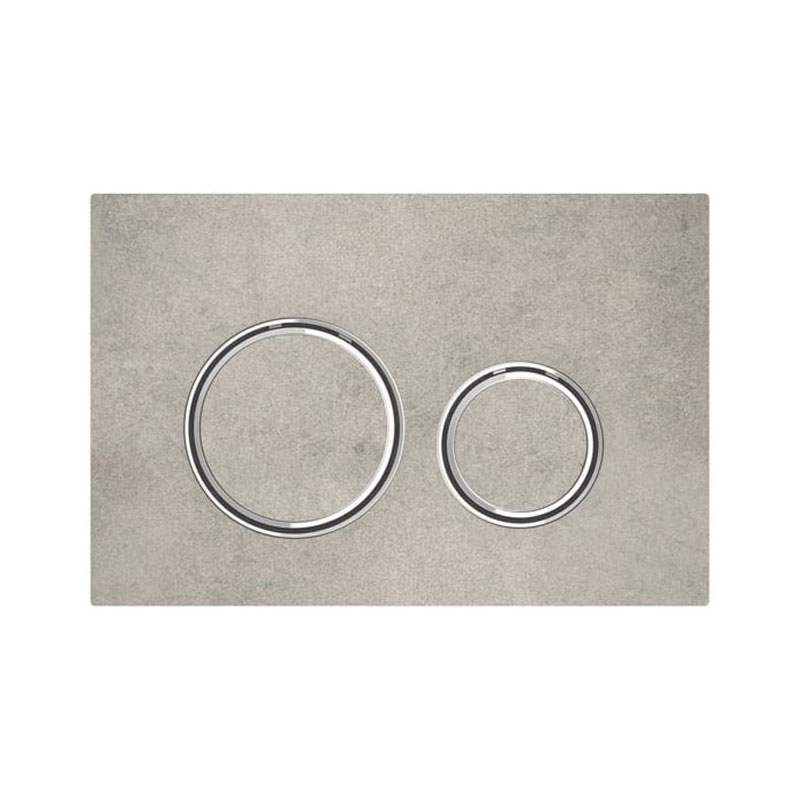

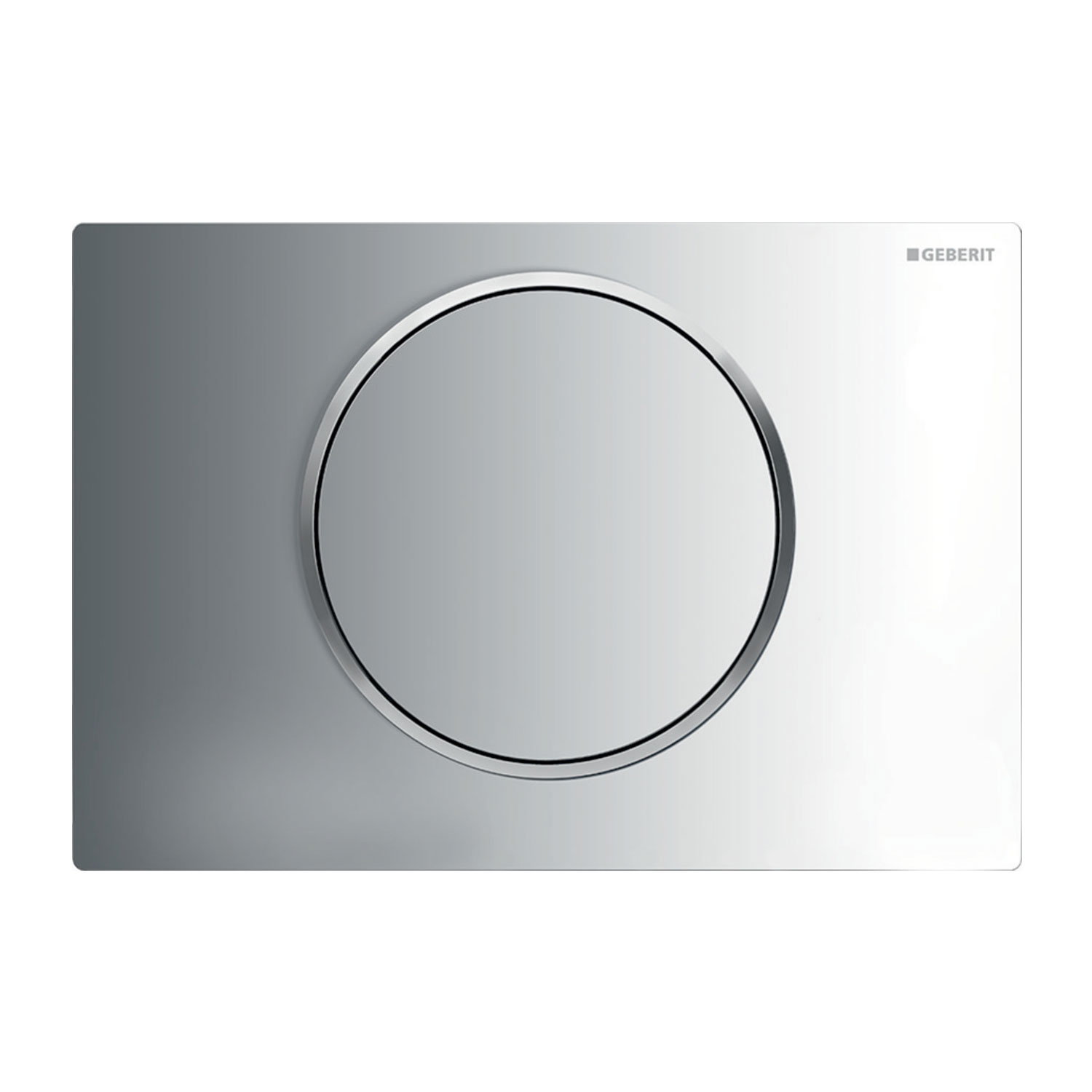

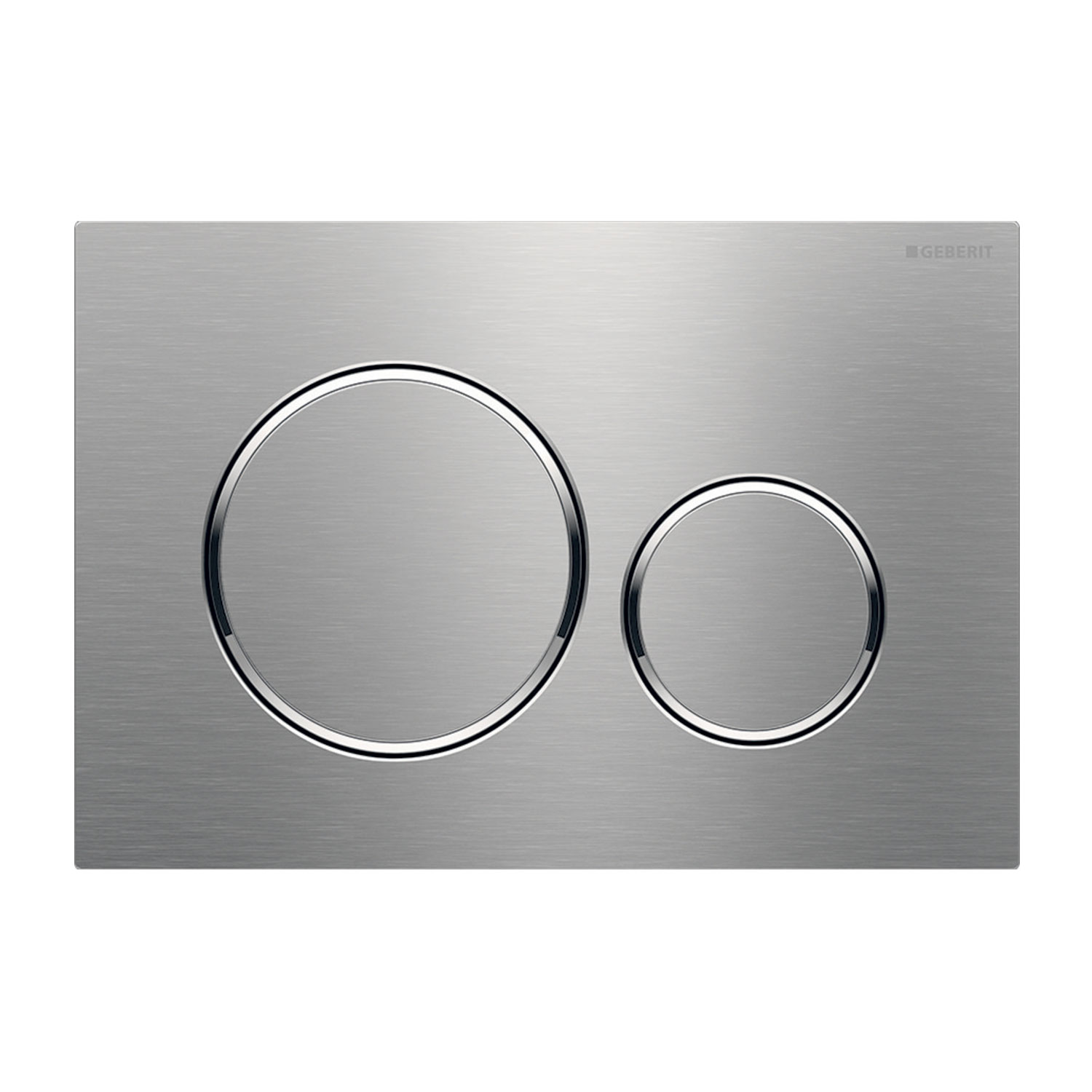

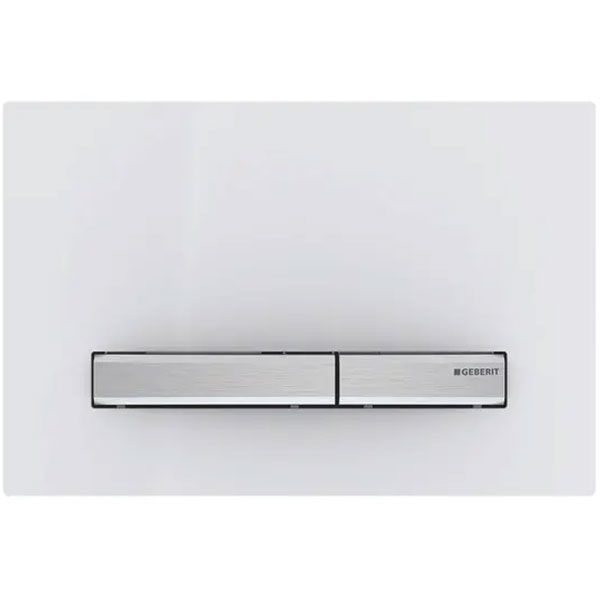

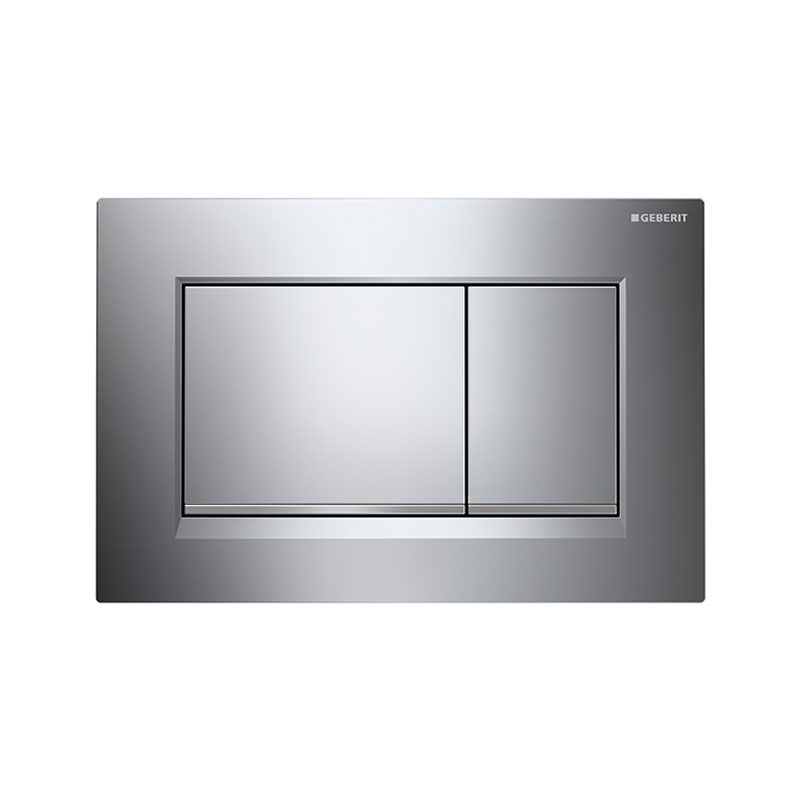

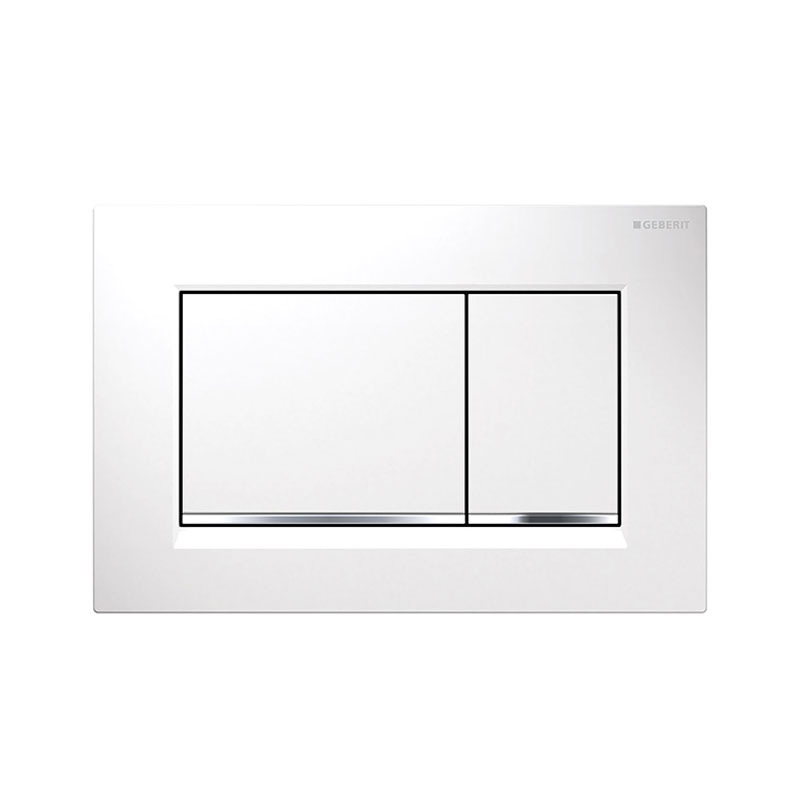

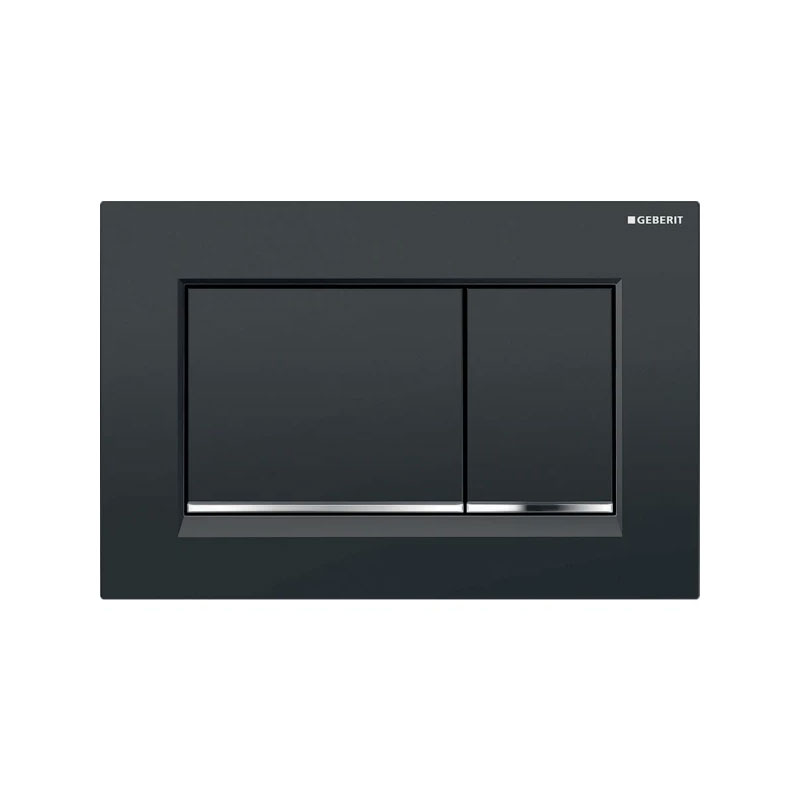

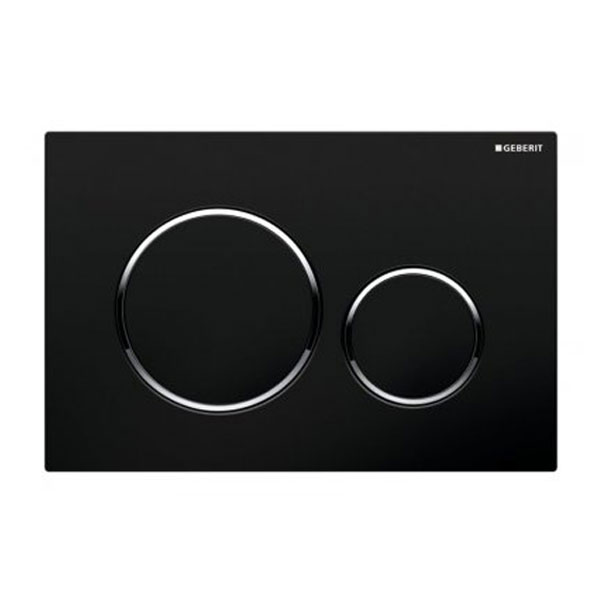

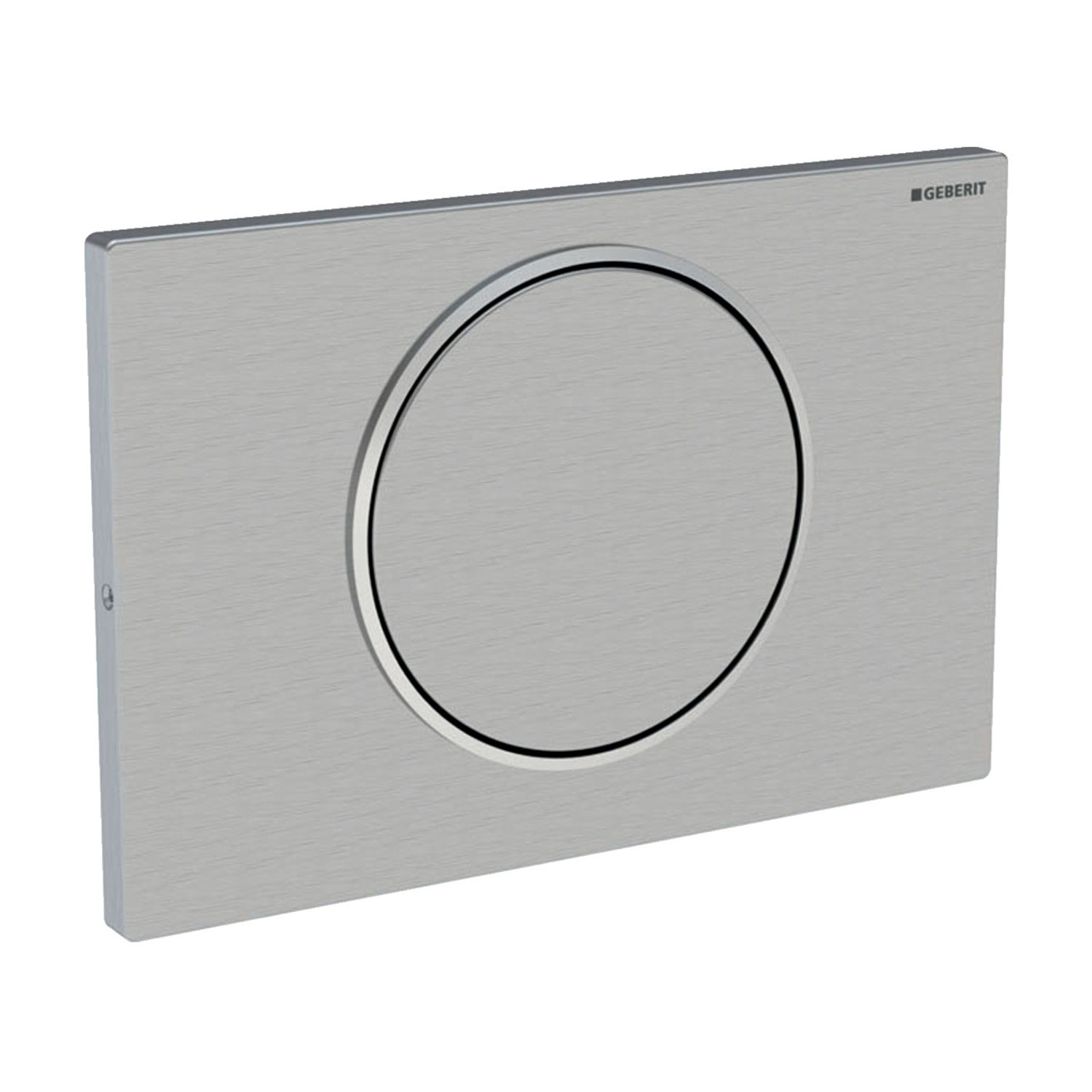

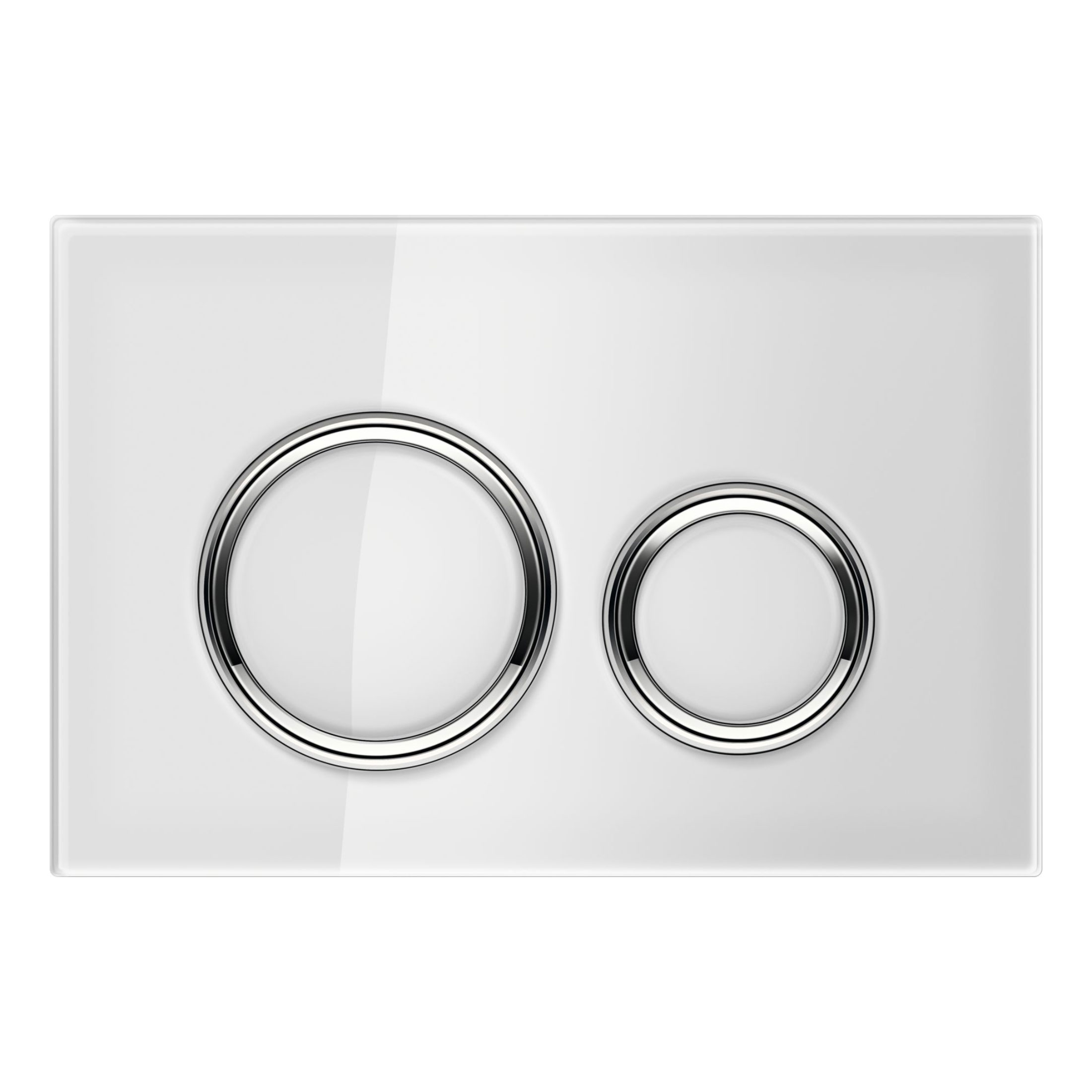

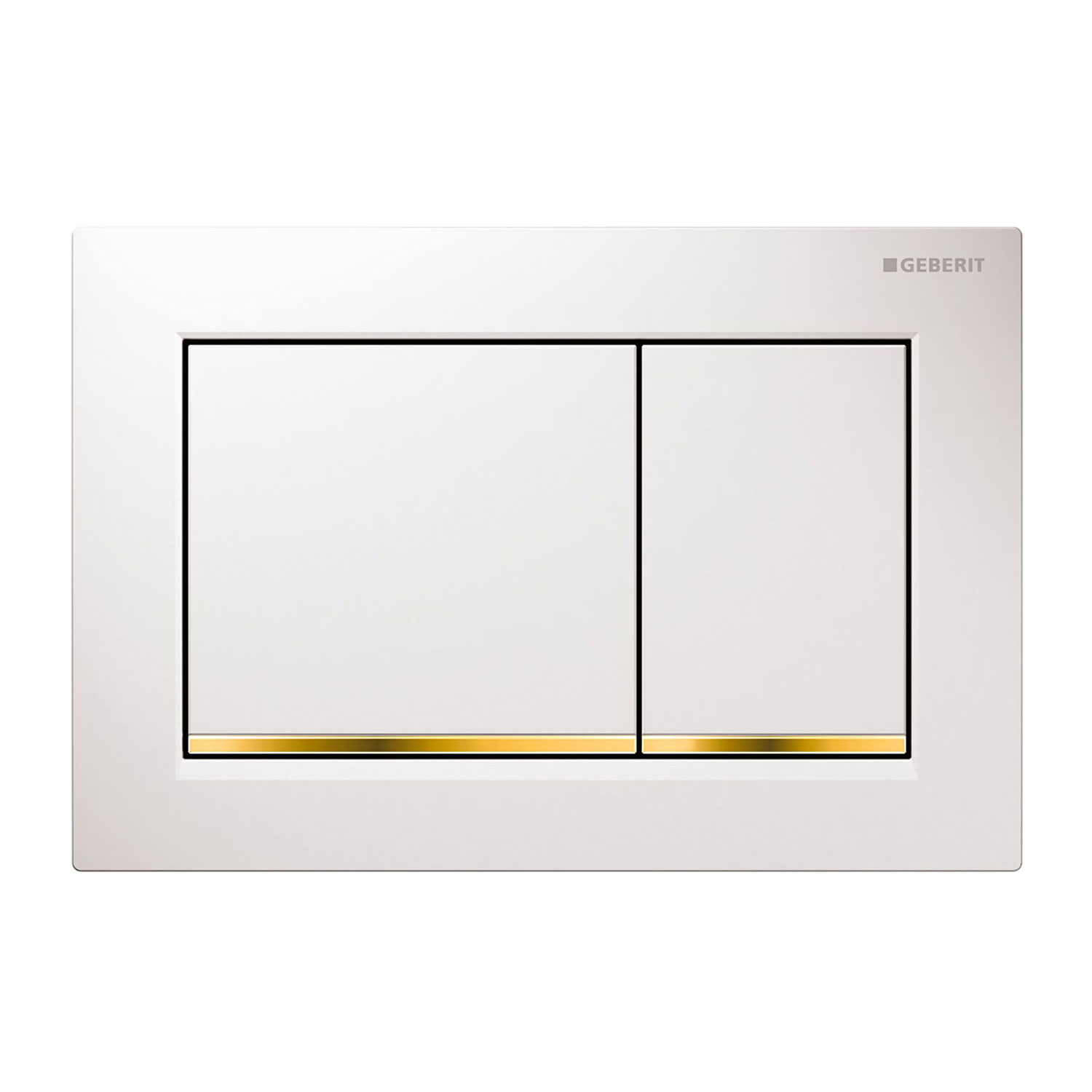

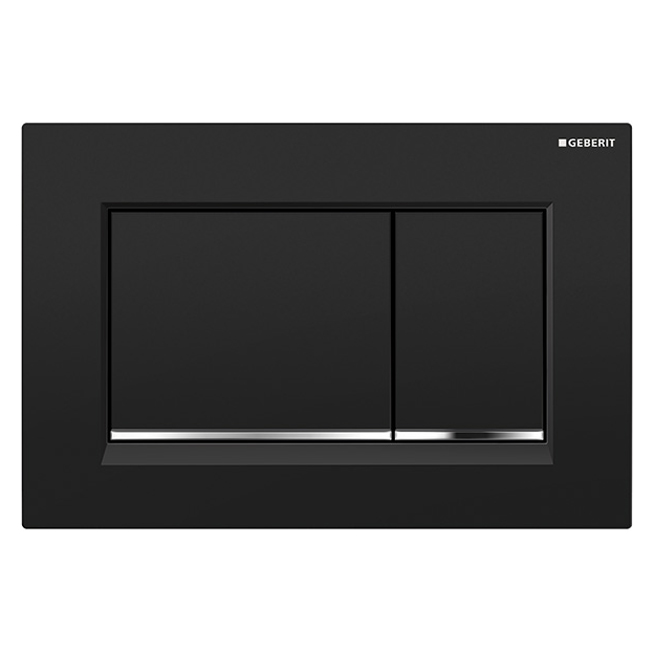

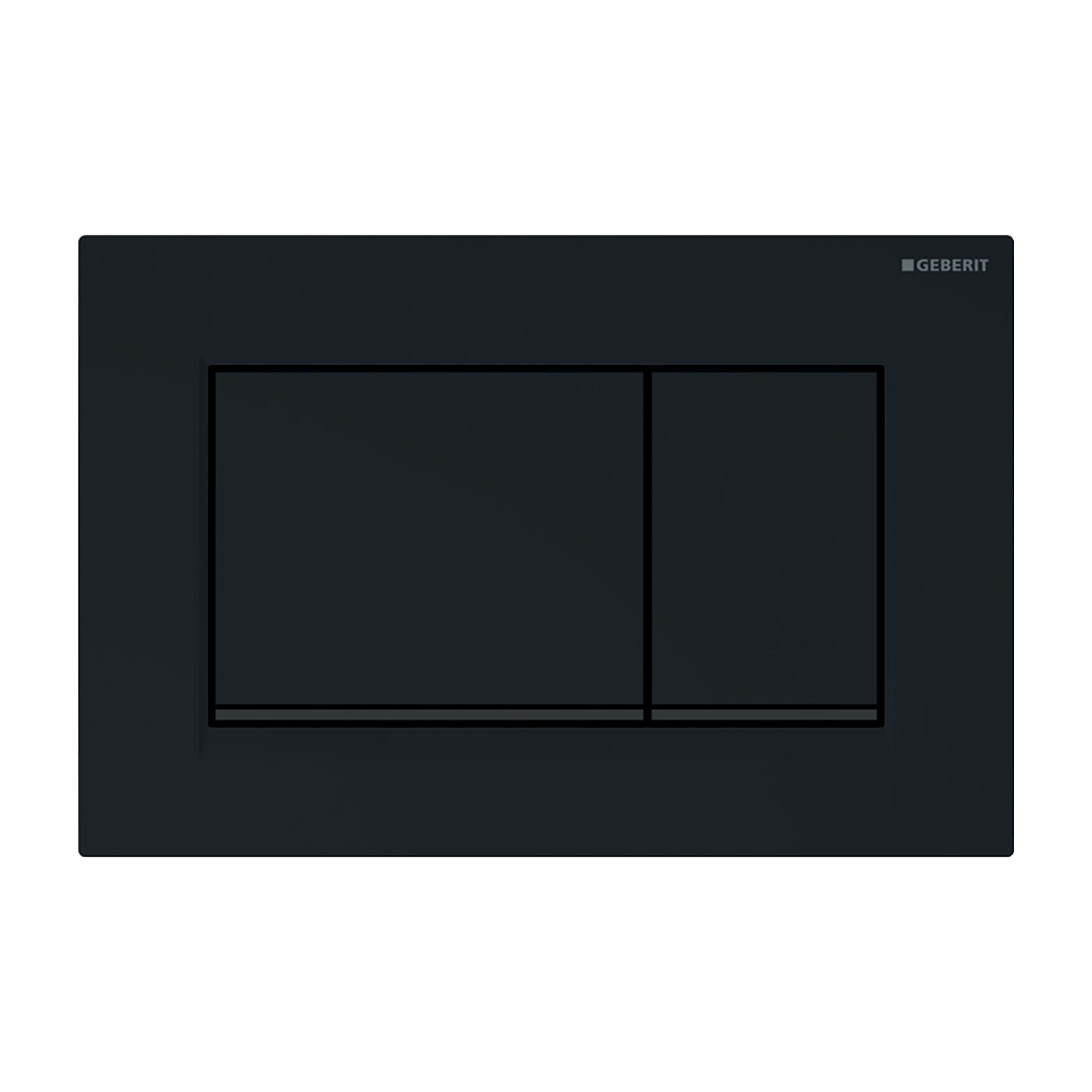

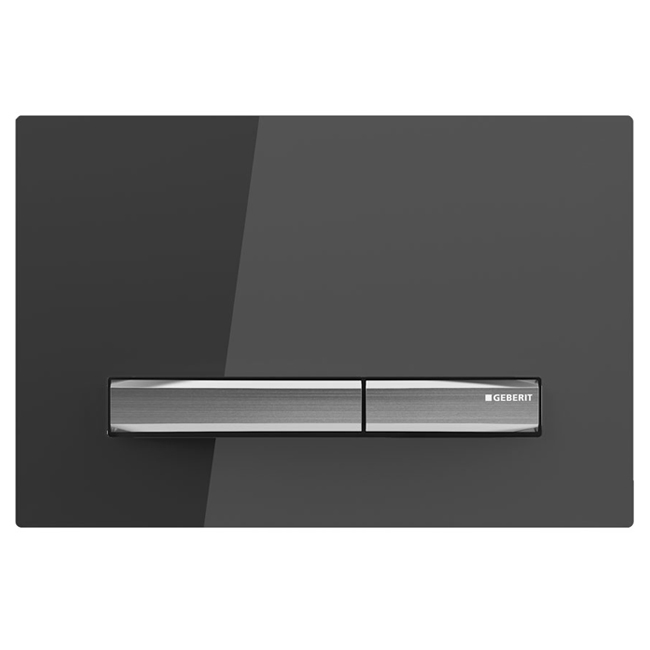

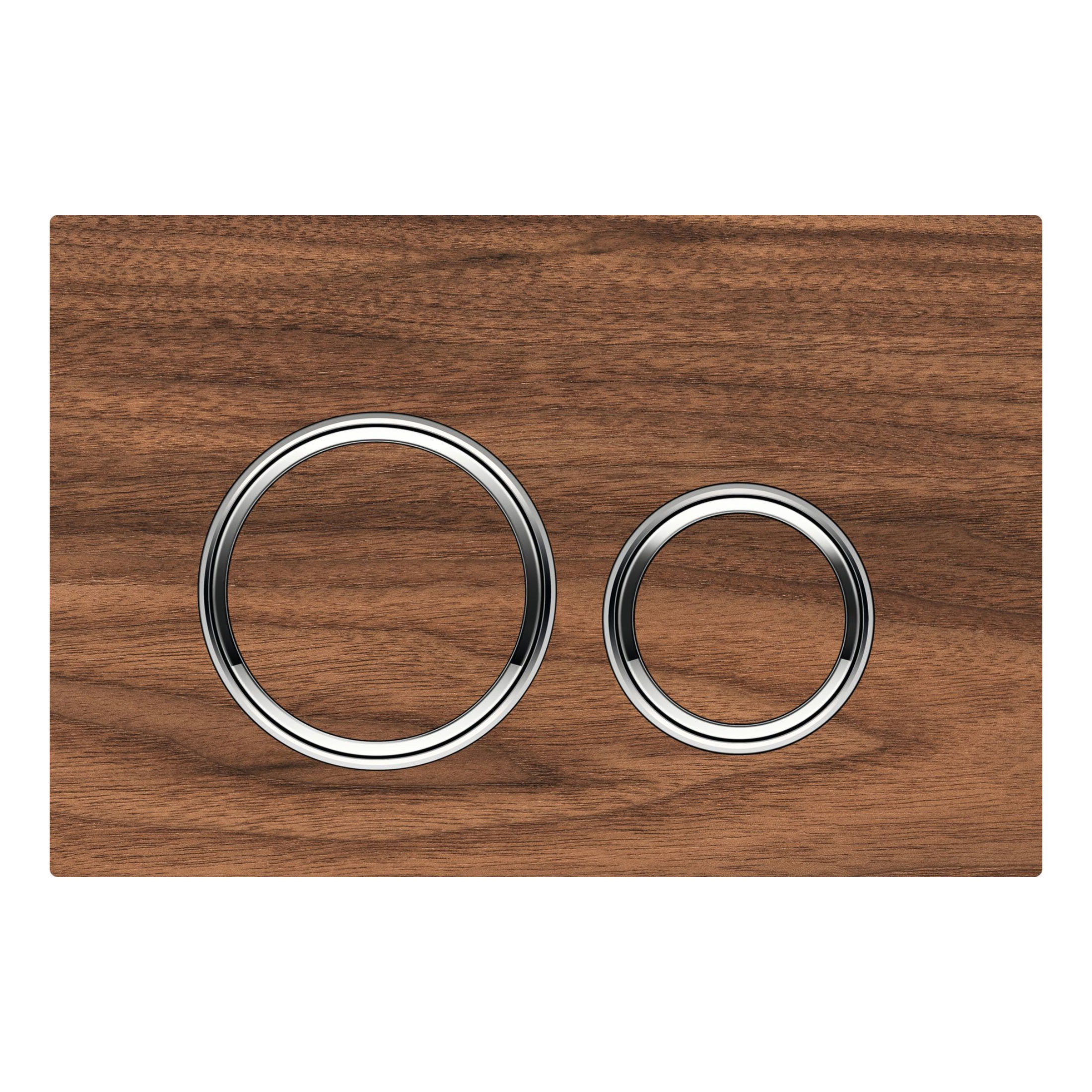

- Flush plate sold separately, (See the You May Need)
