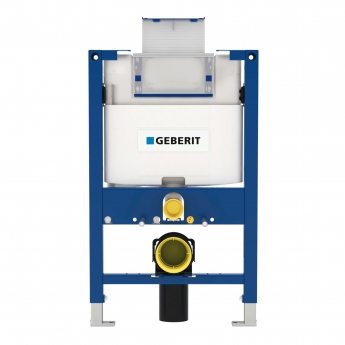

Designed to last this Geberit Omega frame incorporates tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.
Dual flush with volume adjustment options to help save water
Leakproof due to one piece blow moulded cistern
Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability
Product Features
- For installation in part or full height room installations
- Galvanized feet
- Non-slip leg supports
- Rotatable foot plates
- Feet adjustable 0-20 cm
- Power & Connect Box mountable
- Self-supporting frame, powder-coated
- Fastening option for electrical connection

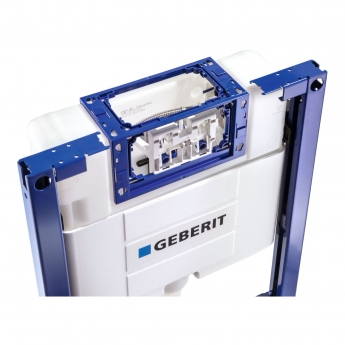

- Concealed cistern with top or front actuation
- Water supply connection on the left or rear left
- Fastening for connection bend, sound-absorbing
- Immediate post flush possible with factory setting
- Concealed cistern, fully insulated against condensation
- Protection box for service opening can be cut to length
- Every Geberit cistern is individually tested to guarantee water tightness
- Acoustic solutions with the Duofix frame mean its all quiet behind the scenes
- Tool-free installation and maintenance work on concealed cistern
- Geberit stock spare parts for 50 years for Omega concealed cisterns
- Frame with 9mm drilling holes for fastening in wood frame construction
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Protection cover box for service opening protects against moisture and dirt
- With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg) when combined with Geberit ceramic wall hung toilets
- No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
- Compatible with over 23 flush plate finishes & styles
- Compatible with all Geberit Omega flush buttons
- Supplied with a 10 year guarantee on cistern ( 50 year on spare parts ) from the manufacturer
Important Information

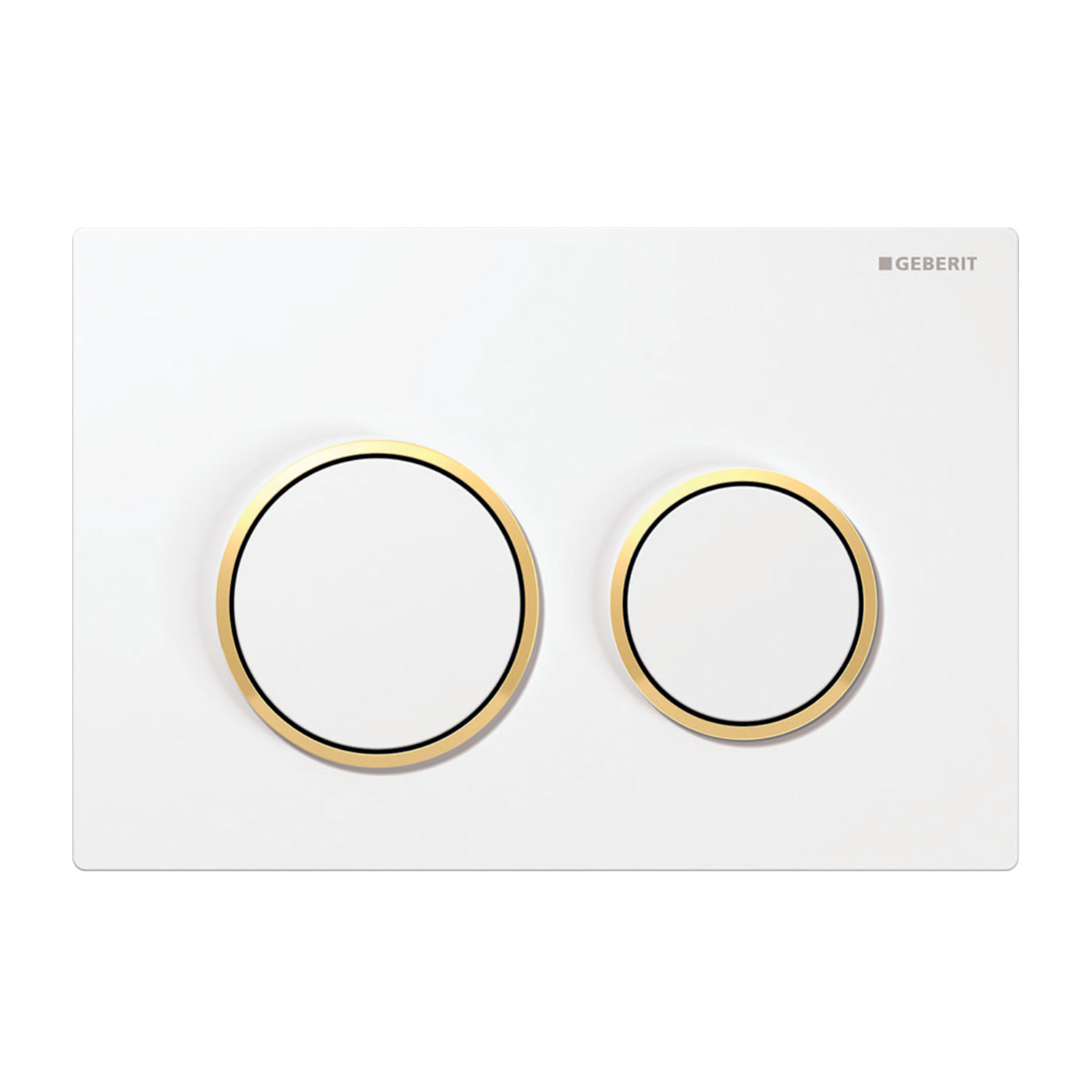

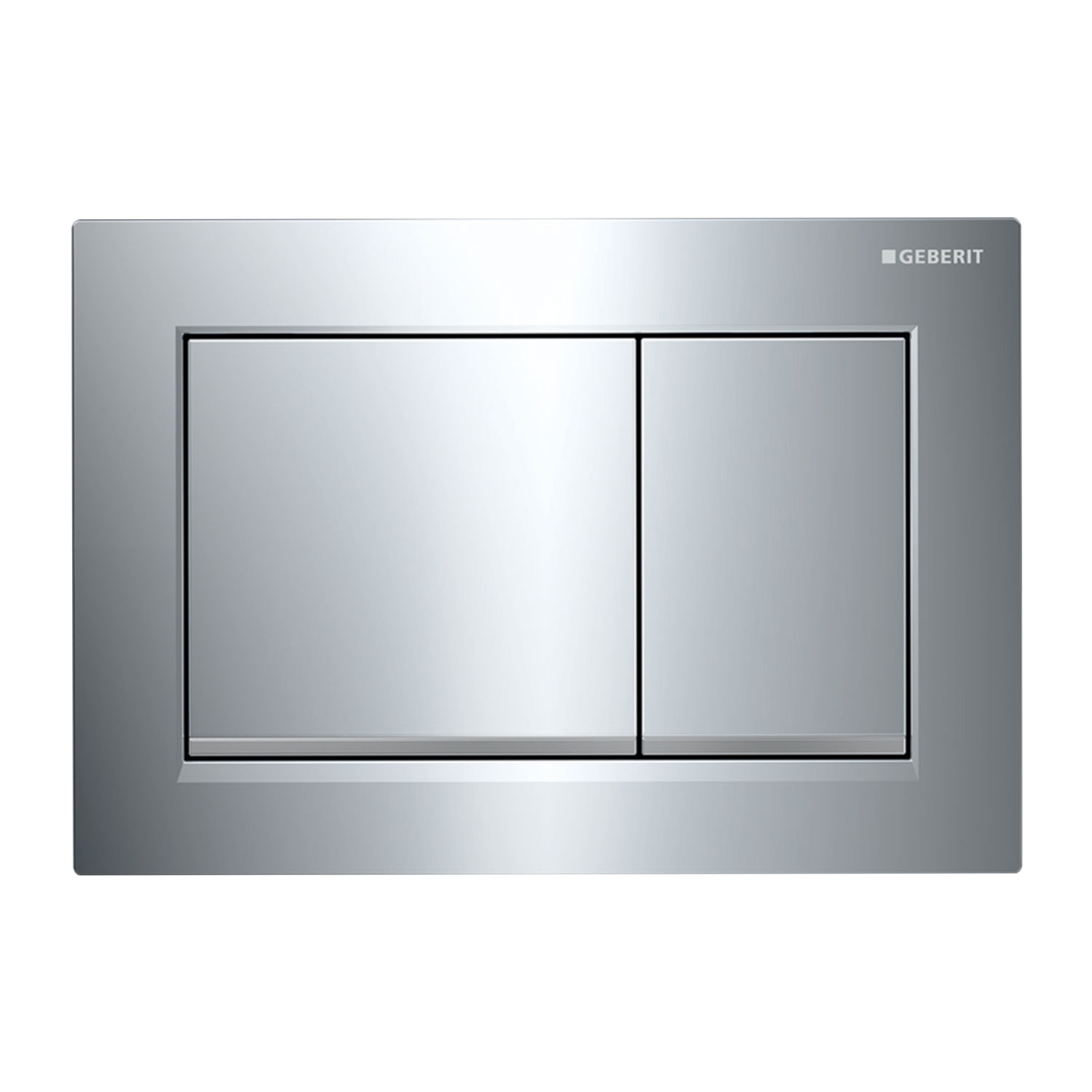

- Flush plate sold separately, (See the You May Need)
