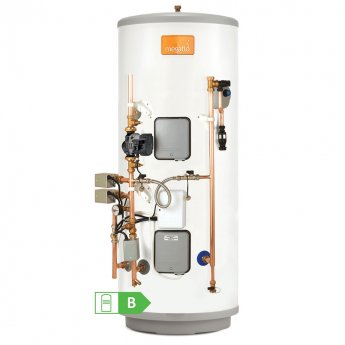

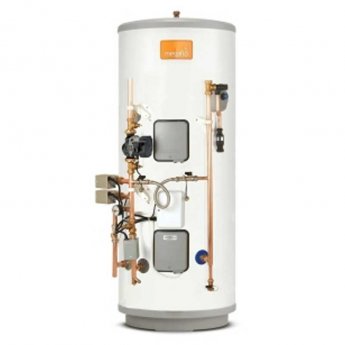

Heatrae Sadia Megaflo Eco SystemFit Unvented Indirect Hot Water Cylinder - 300 Litre

Product Features

• Fully plumbed and wired system components
• 60mm insulation
• Insulated T&P valve
• High grade duplex stainless steel pressure tested to 15 bar
• Delivers up to 76 litres per minute of hot water at 3 bar pressure
• Neat appearance, saves space and reduces installation time
• Improves SAP performance
• Improves SAP performance
• High corrosion resistance for long life
• Outstanding hot water performance without the need for shower pumps or tanks, even at low pressures
• Internal expansion with floating baffle
• Max flow at 3 bar (76 l/min)**
• Max flow at 1 bar (45 l/min)**
• Thermostat temperature settings of the water heater, as placed on the market by the supplier 60 degree C
• Maximum supply pressure to incoming mains cold water combination valve (supplied) 1.6 MPa (16 bar)
• Minimum recommended supply pressure and flow rate 0.15 MPa (1.5 bar) - 20 litres per minute
• Operating pressure 0.3 MPa (3 bar)
• Thermal insulation (nominal thickness 50mm)
• CFC/HCFC free, fire retardant expanded polyurethane foam with zero ozone depletion
• Global warming potential (GWP) = 3.1
• Pressure relief valve 0.8 MPa (8 bar)
• Immersion heater rating (AC supply only) - 3kW @ 240V and 2.8kW @ 230V
• 22mm compression DHW connections
• Primary flow and return 22mm o/dia pipe
• Made in the UK
• Manufactured in a factory approved to: BS EN ISO 9001, OHSAS 18001, ISO 14001 and ISO 50001
• Domestic Warranty - Lifetime (The cold water combination valve (and domestic hot water expansion vessel, where supplied) is covered by a 5 year warranty from the date of purchase, All other components, including any other valves, immersion heaters, fittings and controls are covered by a 2 year warranty from the date of purchase)
• Commercial Warranty - 30 year (All other components, including valves, expansion vessels, immersion heaters, fittings and controls are covered by a 2 year warranty from the date of purchase)
