Nuie Windon Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome Nuie Windon Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome
Nuie Windon Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome Nuie Windon Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome

Nuie Windon Square Thermostatic Bar Shower Valve Bottom Outlet - Chrome

Quick Code: 2828850
Ref: PMWIN503
Nuie
£98.95 Inc. VAT

New lower prices across Nuie and Hudson Reed until January 1st 2025

Was: £106.95

PayPal Credit

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 1 outlet
  • Thermostatically controlled
  • Square design for an ultra modern look
  • Patented Valquest cartridge - Made in Britain
  • Accurate flow control
  • Can be fitted vertically or horizontally
  • Fully reversible cartridge
  • Bottom outlet
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • Suitable for unvented mains pressure systems
  • Suitable for shower pumps
  • Stain rust resistant
  • Manufactured from high quality brass/ABS
  • Comes in chrome finish

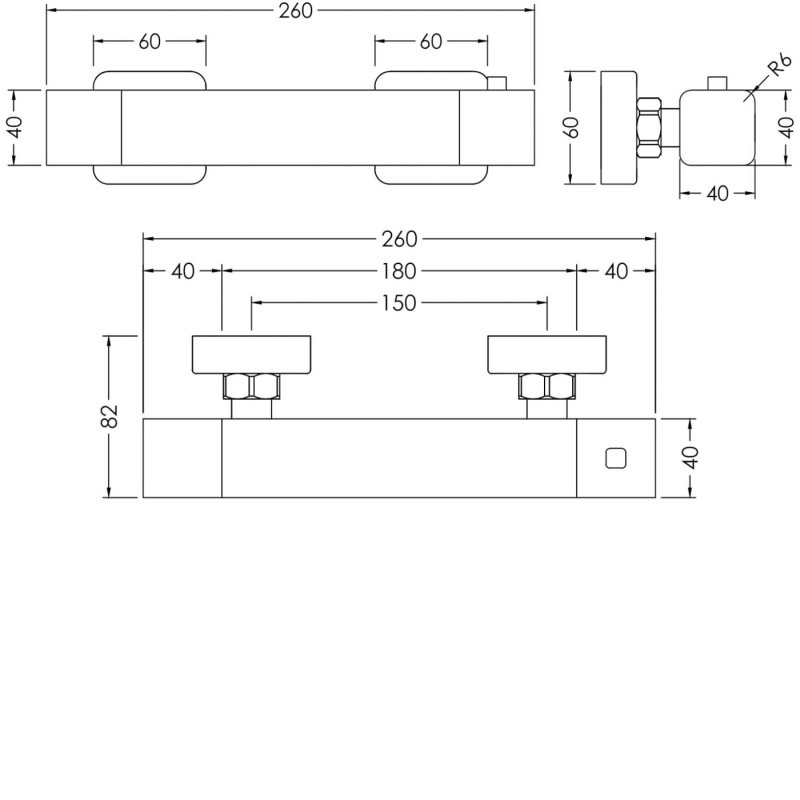

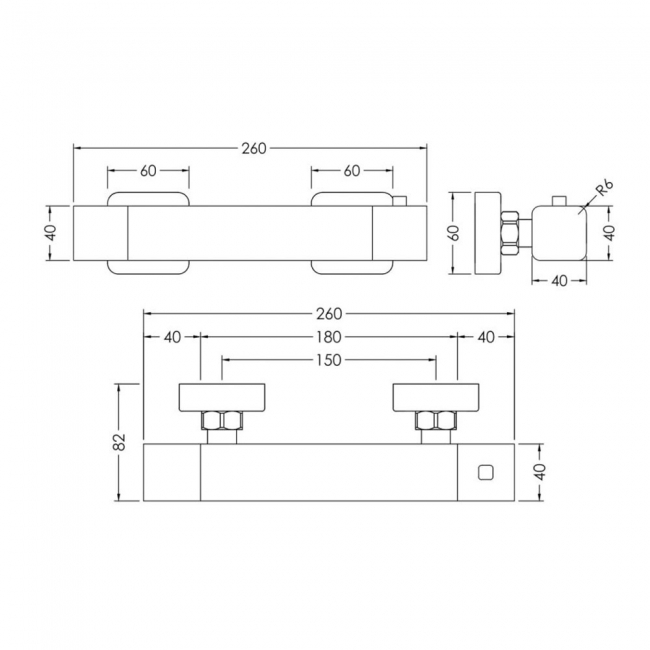

  • Refer to dimension drawing tab for complete size details
  • Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Important Information

  • Shower Kit sold separately (See the You May Need)
Show More

Shower TypeThermostatic
Shower Valve Controls2
Shower Valve PositionBar
Valve ShapeSquare
Handle TypeSquare
Shower Valve Outlets1
Minimum Pressure0.2 Bar
Shower Valve Width260mm
Shower Valve Depth65mm
Inlet Connection Size1/2 BSP
Connection Centres150mm
MaterialBrass/ABS
ColourChrome
Weight1.71 Kg
BrandNuie
CollectionWindon
StyleModern
MarketDomestic
EAN Barcode5056211898375
Manufacturer Part Number(s)WIN503
Flow Rate @ 0.5 Bar7.9 l/min
Flow Rate @ 1.0 Bar11.3 l/min
Flow Rate @ 2.0 Bar16.2 l/min
Flow Rate @ 3.0 Bar19.8 l/min
Show More

Product Datasheet
Type : PDF Size : 536.19 KB
Brochure 2024
Type : PDF Size : 36.78 MB
Shower Mixer/Valve Fitting Instructions
Type : PDF Size : 255.44 KB
Guarantee Policy
Type : PDF Size : 319.11 KB
